Level Compensation Pack

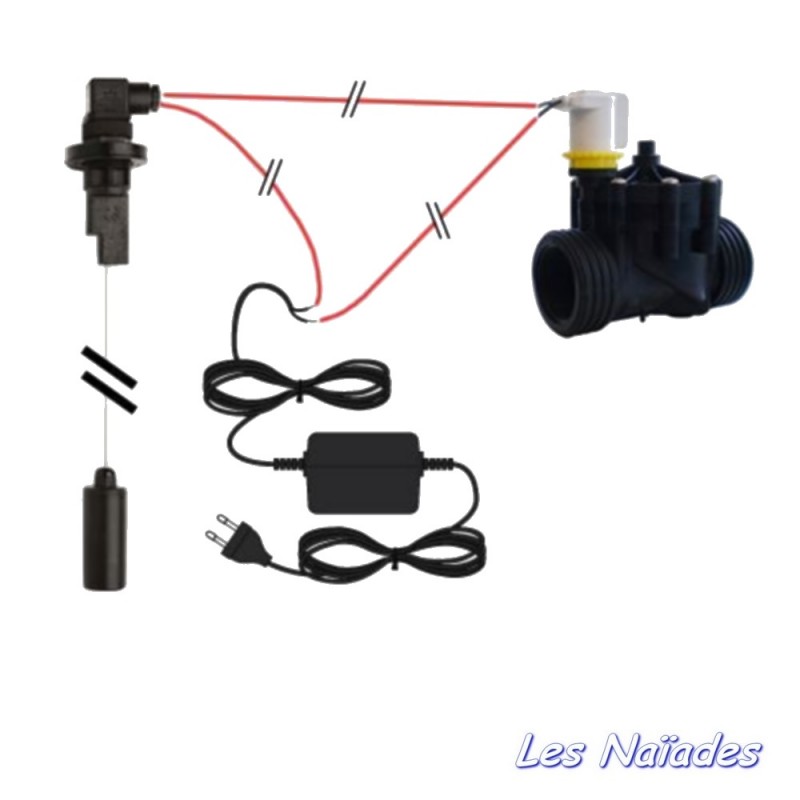

Set includes 1 level sensor, 1 transformer, and 1 solenoid valve.
Simple, effective, and excellent value!
Very compact level switch for topping up water in tanks, basins, and ponds, among other applications. Level detection is achieved via a relay circuit with a stainless steel pin and float.
The stainless steel pin can be shortened from 10 to 50 cm. It switches on at a level difference of approximately 5 mm.
Maximum temperature up to 80°C, flanged connection, maximum 80 watts, 1 amp, 250 VAC.
It can be used, among other applications, directly on the water line with a 24-volt solenoid valve and a 24V transformer included in the package (in this configuration, connect to terminals 2 and 3). For drainage pumps, connect terminals 1 and 3.
