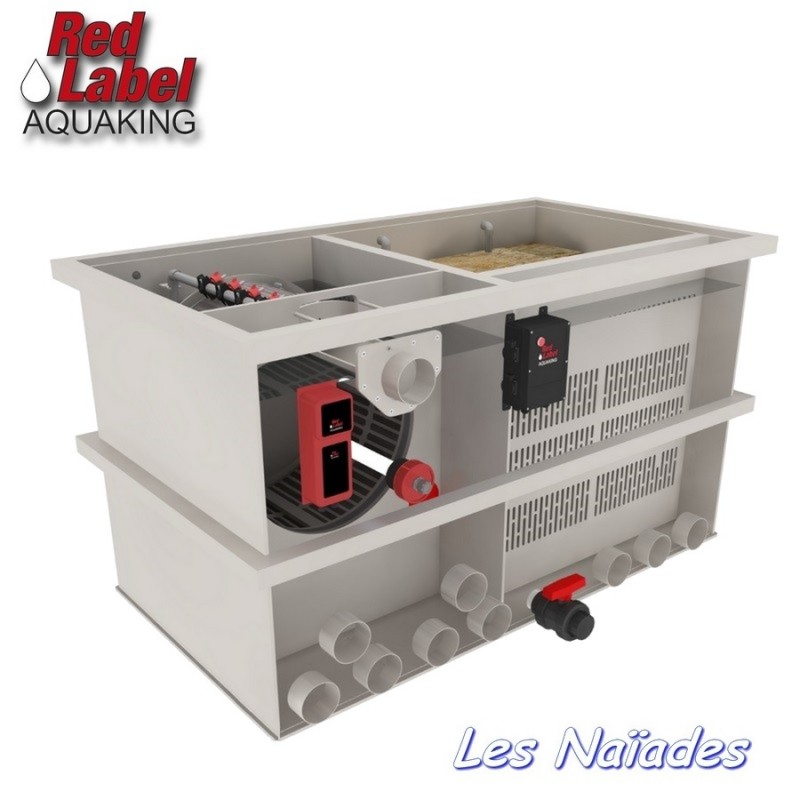

Combi Filter Red Label Basic

Element comprising a drum filter and a biological filter.

This Combi Basic range includes five models!

Sold complete WITH biological supports.

Possibility of purchasing this filter WITHOUT organic supports, contact us!

3 200,00 € tax incl.

HOW DOES A DRUM FILTER WORK?

The filter consists mainly of a tank in which is housed a rotating drum: this drum is coated with a filter membrane of 120 microns (0.12 mm) on its periphery.

The dirty water from the basin is directed into the interior of the drum and, to leave this filter, the water must pass through the filter membrane.

The water in the basin, which is freed of particles, comes out of the filter and is directed to the biological part of the filter.

As the dirty water passes through the drum, the particles settle out, blocking the small holes in the membrane which gradually clogs.

The passage of water is slowed down, causing a difference in level between downstream and upstream of the sieve.

At this time, the detection system starts a drum cleaning cycle. From this moment, the drum turns very slowly and the nozzles placed on the upper part (external side of the drum) project water jets on the filter membrane: under the pressure of the water, the smallest dirt is expelled from the filter membrane.

This dirt is collected in a gutter and directed to the sewer. The upstream / downstream water level is restored until the next cycle.

This cleaning is minimalist: it only intervenes when necessary and the drum only rotates.

This model also includes a biological filter: the water first passes from the drum part (mechanical filtration) to the biological part from where it will then be evacuated to the basin.

ADVANTAGES

There are many and the first is obvious: good filtration is based on the principle of removing as quickly as possible a maximum of particles and extracting them from the water in the pool so that they can no longer harm.

A "normal" filter can only retain what it can, and the waste it retains degrades in the water. With a drum, this is not the case, the biological filtration is less strained, which in many cases makes it possible to reduce its volume.

Finished the chore of cleaning the pre-filter with grid or the brushes, a drum filter is self-cleaning. Let's be honest, this filter still requires a minimum of attention because it is a machine, and therefore some minor interventions are to be expected periodically, but nothing binding.

Remember that a filter is never too large: the rinsing frequency will be comfortable (3 to 4 rinses per hour in summer for ten per day in winter). On the other hand, a filter that is too small will consume more water because it will have to rinse more often. We are at your disposal to guide you in your choice.

THE STRENGTHS OF THESE MODELS
> included, Basic regulation, internal rinsing pump, Amalgam INOX immersion UV, sockets and plugs allowing a quick and worry-free Plug & Play installation.

> This range of Combi BASIC filters includes 5 distinct models which operate in gravity mode or in pumping mode (except 80/100 XXL only gravity). Contact us!

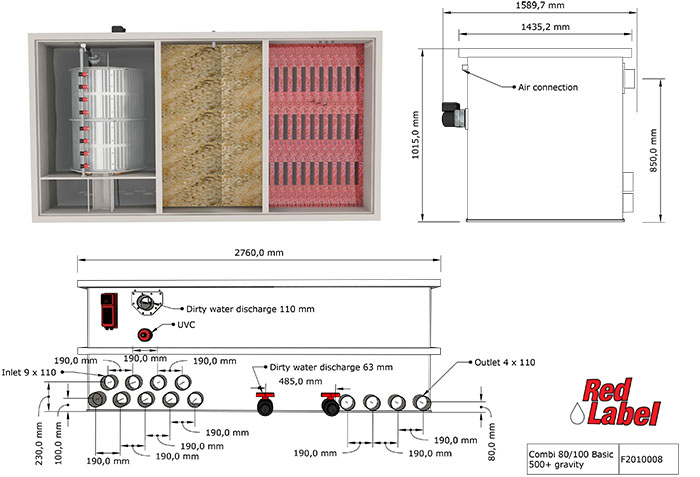

Characteristics
Modèle Combi Basic 20-25 Basic 25-30 XL Basic 50-60 Basic 50-60 Plus Basic 80-100 XXL
Matériau Polypropylène Polypropylène Polypropylène Polypropylène Polypropylène
Couleur Sahara Sahara Sahara Sahara Sahara
Dimensions L x l x H mm 1400 x 1005 x 770 1550 x 1060 x 1020 1820 x 1155 x 1035 2110 x 1155 x 1035 2760 x 1575 x 1035
Tambour D x L mm 400 x 400 400 x 400 400 x 650 400 x 650 800 x 650
Tamis INOX microns 120 120 120 120 120
Entrée mm 3 x 110 3 x 110 6 x 110 6 x 110 9 x 110
Sortie mm 2 x 110 2 x 110 3 x 110 3 x 110 4 x 110
Sortie eaux usées mm 1 x 110 1 x 110 1 x 110 1 x 110 1 x 110
Débit max m3 / heure 25 30 60 60 100
Pression pompe de rinçage bar 3,8 3,8 3,8 3,8 5,0
Inclus diffuseurs d'air 2 x 50 x 300 mm 2 x 50 x 300 mm 2 x 50 x 300 mm 2 x 50 x 300 + tuyau micro 2 x 50 x 300 + disques
Inclus media Hel-X  litres 100 150 450 300 600
Inclus tapis 625 m2/m3  Cassette tapis  Cassette tapis Cassette tapis
Inclus UV Amalgam INOX 40 Watt  40 Watt 80 Watt 80 Watt 80 Watt
Inclus Couvercle Couvercle Couvercle Couvercle Couvercle
Inclus régulation Basic Basic Basic Basic Basic Luxe
Inclus Garantie 2 ans Garantie 2 ans Garantie 2 ans Garantie 2 ans Garantie 2 ans

As standard, the filter is offered with filtration media (Hel-X and mat): it is possible to acquire it empty, therefore without biological filtration. This empty model is nevertheless sold WITH UV, pump, diffuser, regulation etc. it is therefore functional. The only difference is whether or not organic media are delivered, as desired! If you are interested in an empty model, contact us!

TRANSPORT

The price of transporting this item cannot be reasonably calculated in advance due to the numerous variables: location, weight, volume, ordering additional items, possible discount etc.
Rather than applying a package which is often very penalizing, we prefer to calculate the price, on a case by case basis.
The price of the port is decreasing: the more value you load on your pallet, the more you give us the means to lower the price of the port (or even to make it free).
A price offer follows your order: you have the choice to accept or decline.
If in the meantime, a payment has been made, the refund will be made as soon as your cancellation email is received.
You also have the possibility to consult us before ordering.
