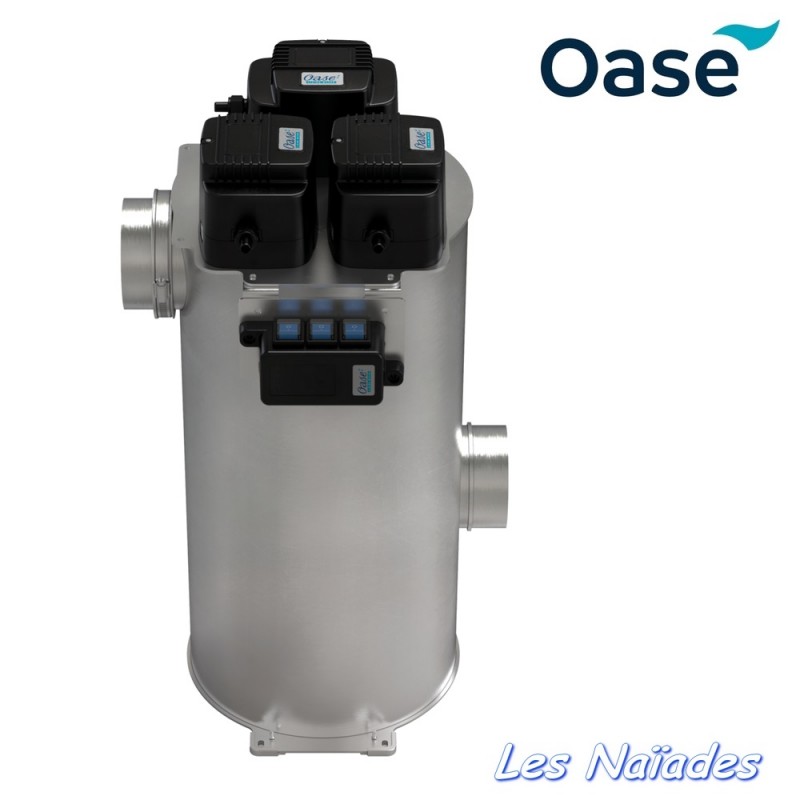

Oase Bitron Premium - Naiades
Efficient and efficient UVC sterilizer
Three models to choose from: 60, 120 or 180 Watt
Efficient disinfection thanks to advanced flow optimization
Particularly simple and flexible installation before or after the filtration system
Extremely powerful elimination of algae and pathogenic bacteria in ponds up to 280 m³.
This clarifier has the same mode of action as an immersed UVC (safe for the eyes) and is particularly energy efficient thanks to the electronic power regulator.
It allows a particularly effective action thanks to a long presence of water in the system.
The flux-optimized reactor design allows direct and almost lossless UV radiation.
Advantages
100% VDE certified eye damage safety
High energy efficiency thanks to electronic power regulator
Premium V4A stainless steel housing for excellent stability and good reflection rates
Particularly simple installation with stainless steel fasteners
Flexible connection before or after the ProfiClear filter system - also for other gravity applications
In the event of an enlargement of ponds or fish ponds, the addition of Bitron Premium UVC devices is possible at any time
Visual functional check
Horizontal or vertical installation possible
Depending on your needs, the lamps can be switched on individually on the Bitron Premium 120 W and 180 W
Extremely efficient elimination of algae and pathogenic bacteria; with the same mode of action as an immersed UVC
Characteristics
| Bitron 60 Watt | Bitron 120 Watt | Bitron 180 Watt | ||
| Dimensions L x l x H | mm | 700 x 290 x 205 | 700 x 387 x 305 | 700 x 417 x 340 |
| Tension | V | 220 - 240 V 50 Hz | 220 - 240 V 50 Hz | 220 - 240 V 50 Hz |
| Longueur du câble | m | 5 | 7 | 7 |
| Puissance | Watt | 60 | 120 ( 2 x 60 W) | 180 (3 x 60 W) |
| Entrée | mm | 110 | 110 | 110 |
| Sortie | mm | 110 | 110 | 110 |
| Débit max recommandé | l / h | 40.000 | 70.000 | 100.000 |
| Débit max gravitaire | l/h | 16.500 | 33.000 | 50.000 |
| Pression max | bar | 0,6 | 0,6 | 0,6 |
| Poids | kg | 7,80 | 13,10 | 17,40 |
