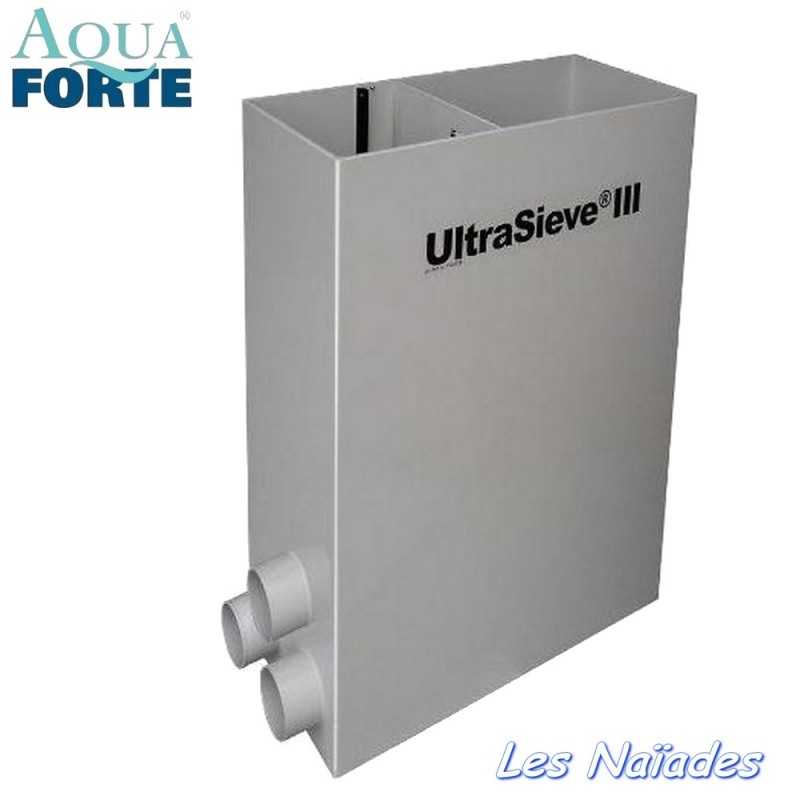

UltraSieve III AquaForte

The UltraSieve III pre-filter operates in gravity mode.

The water is routed through the 110 mm pipes from the basin to the pre-filter.

The amount of water entering the prefilter is regulated by a float device.

When the water level rises in the prefilter, the float rises and acts on a lever, allowing less water to pass through.

An equilibrium is obtained between the water which enters the pre-filter and that which is pumped, which maintains a constant water level under the grid in the pre-filter.

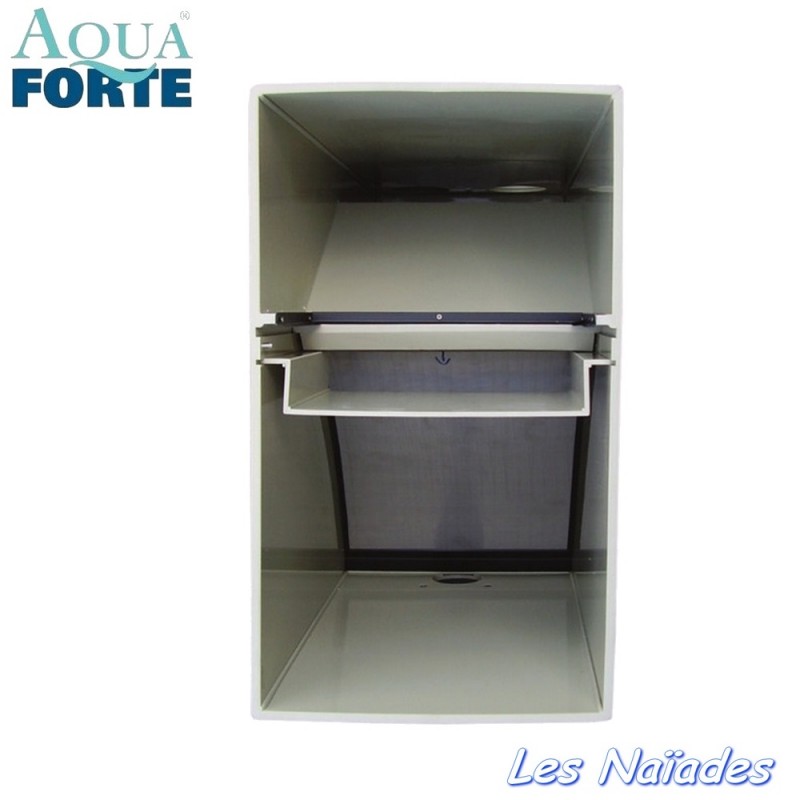

Water that falls through the stainless steel grate is freed from dirt with a size greater than 0.3 mm.

The water can then be directed to the biological filtration by a pump that sucks up the water held underneath the grid.

Three models of choice: 2 or 3 entries of 110 mm with grid 300 microns, or 2 entries of 110 mm with grid of 200 microns.

Applications

As a pre-filter, upstream of a multi-chamber or run-off filter.

As a pre-filter, upstream of a bead filter.

Suitable for a basin in gravity mode.
