Drum filter Inazuma Quantum 60

IK23060Q

New range of Inazuma “Quantum” drum filters.

A video is available in the description.

3 340,00 € tax incl.

The Inazuma Quantum 60 drum filter thoroughly and reliably cleans your pond automatically, without the need for consumables, energy-saving, and resource-friendly.

It is suitable for ponds up to 60 m³ and Koi ponds up to 30 m³ in size.
Through a clever design, the filter can be used for both pump-operated and gravity-fed setups.

Inazuma uses food-grade, industrial-quality stainless steel V2A for the filter housing. Additionally, Inazuma drum filters come with features such as dry-run protection and safety overflow, among others, as standard equipment.

One of the most appealing aspects of an Inazuma filter is its low maintenance costs. It only requires purified pond water for the backwashing process and doesn't use consumables such as fleece. Instead, impurities are reliably removed from the system by the robust drum with 50 μ V2A stainless steel mesh fabric.

The installation, connection, and commissioning of your filter are incredibly simple. The filter is delivered fully assembled and ready for installation.
Just place the filter, connect it to the piping, mount the control sensors inside the filter, plug in the power cord, and you're on your way to clear water. That's how easy pond filtration can be.

For those who want more control and adjustment options, the Clever V8 microprocessor control is included with every drum filter.
Based on our 15 years of experience in filter construction, the optimal parameters for backwash times, duration, and other indicators are firmly programmed in the control unit.

For even more comfort and flexibility, there is the optional WebCSA V2 internet-enabled control system.
With the WebCSA app (Android & iOS), you can conveniently view and control many parameters from anywhere in the world using your smartphone or tablet.
The system can be customized to your needs with features such as PowerSwitch expansion, temperature sensor, and level regulation.
The WebCSA control system can also be used with the app without an internet connection.

The guaranteed supply of spare parts directly from the manufacturer for 10 years ensures long-term satisfaction with a solid, low-maintenance filter made in Germany.

FOR THOSE WHO DO NOT KNOW HOW THIS FILTER WORKS.

The filter mainly consists of a tank in which is housed a rotating drum: this drum is coated with a 50 micron (0.05 mm) filtering membrane on its periphery.

Dirty water from the basin is directed inside the drum and, to leave this filter, the water must pass through the filter membrane. The pond water, which has been freed from particles, leaves the filter and is directed to the biological part.

As the dirty water passes through the drum, the particles settle, blocking the small holes in the membrane, which gradually clogs.

The passage of water is slowed down, which causes a difference in level between the downstream and the upstream of the sieve.

At this time, the detection system starts a drum cleaning cycle. From this moment, the drum rotates very slowly and the nozzles arranged on the upper part (external side of the drum) project jets of water on the filtering membrane: under the pressure of the water, the smallest dirt is expelled from the filter membrane.

This dirt is collected in a gutter and directed outside the filter. The upstream/downstream water level is restored until the next cycle.

This cleaning is of a minimalist type: it only occurs when necessary: the consumption of water and electricity is therefore negligible.

This model does not include a biological filter: we offer mechanical + biological combinations on our site (see BioKompakt).

FEATURES

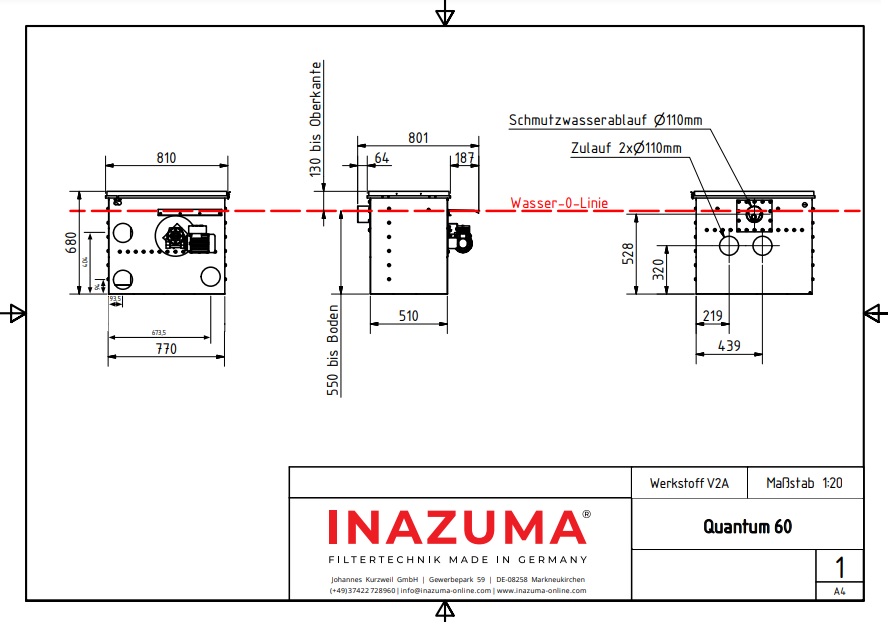

In addition to the filter features described below, you can also download the plan for this model.

Mode de filtration Pompage / gravitaire
Volume bassin à Koi maxi m3 30
Volume étang maxi m3 60
Matériau Acier Inox V2A
Poids kg 90
Dimensions L x l x H mm 810 x 801 x 680
Surface du tamis immergé mm2 294700
Finesse de filtration micron 50
Entrée mm 2 x 110
Sortie mm 3 x 110
Sortie eaux usées mm 1 x 110
Débit max pompage (10 mg MES / litre) m3 / heure 20
Débit max gravitaire (10 mg MES / litre) m3 / heure 15
Tension nominale V 230 V / 50 Hz
Tension du moteur V 230 V / 50 Hz
Inclus Pompe de rinçage interne INOX
Inclus Unité de commande Clever V8
Inclus Support pour lampes UVC (4 x)
Inclus Protection anti-débordement
Inclus Protection marche à sec
Options

UVC lamp, WebCSA connected controller

Operating diagrams

Vidéo

Video with animation describing how the drum filters work (model shown is not Quantum)

TRANSPORTATION

The free transport of this article does not apply since the transport is imperatively on pallet and not by simple parcel.
The price of transporting this item cannot be reasonably calculated in advance due to the fairly numerous variables: location, weight, volume, ordering additional items, possible discount, etc.
Rather than applying a fixed price which is often very penalizing, we prefer to calculate the price, on a case-by-case basis.
The price of shipping is decreasing: the more value you ship on your pallet, the more you give us the means to lower the price of shipping (or even make it free).
A price offer follows your order: you have the choice to accept or refuse.
If in the meantime, a payment has been made, the refund will take place as soon as you send your cancellation email.
You also have the possibility to consult us before placing an order.
