FiltoClear 2.0 Oase - Naiades

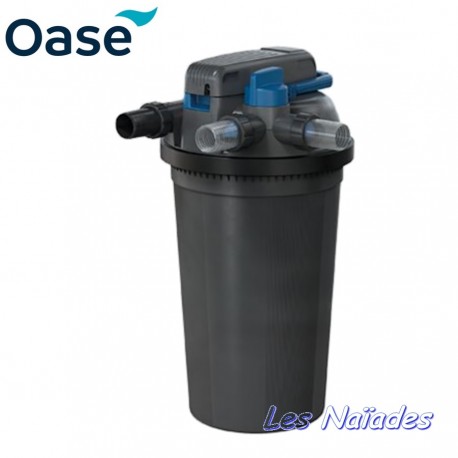

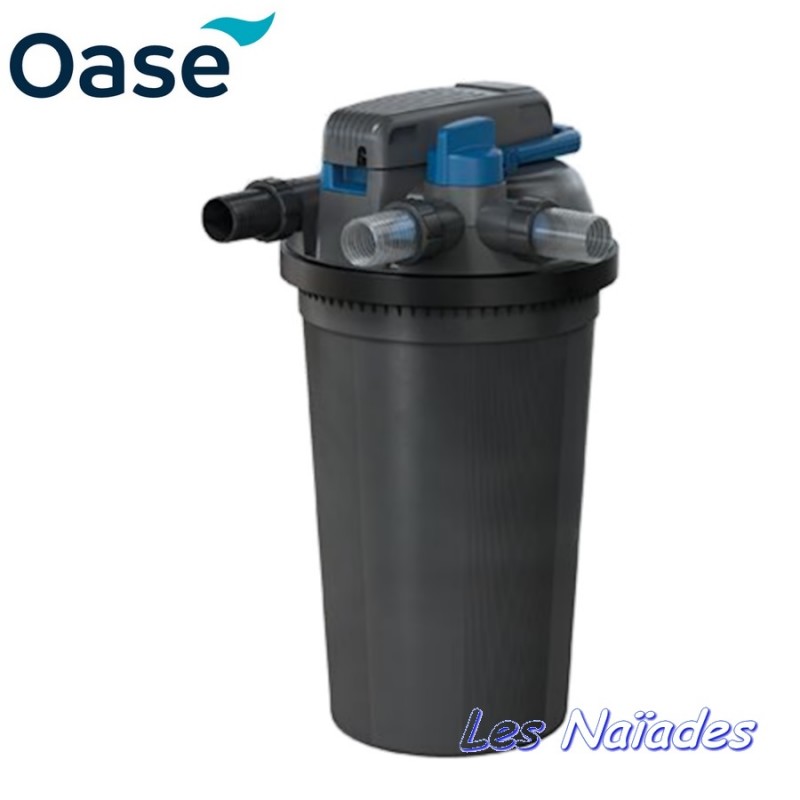

FiltoClear 2.0: the new generation of pressure filters!

Pumping mode.

279,00 € tax incl.

The new FiltoClear 2.0 offers a simple but very effective solution for pond filtration. Allowing installation above or below water level, they can be easily concealed when buried in the ground.

Maintenance can be performed without disassembly by operating the filter handle to compress internal foams and remove debris.

Dedicated waste outlet and bypass valve ensure debris does not enter the pond system during back flushing. The filter has a built-in ultraviolet sterilizer to remove suspended algae (the cause of green water) while also controlling the population of free-swimming bacteria.

Advantages

Mechanical and biological with UVC, to obtain clear water efficiently, ensure maximum ease of maintenance and installation, Thanks to your valuable comments and our own experience, our research and development experts have improved what should be 'to be. You can expect a reliable and convenient opening mechanism for cleaning the filter, improved clogging-resistant filter sponges.

Characteristics

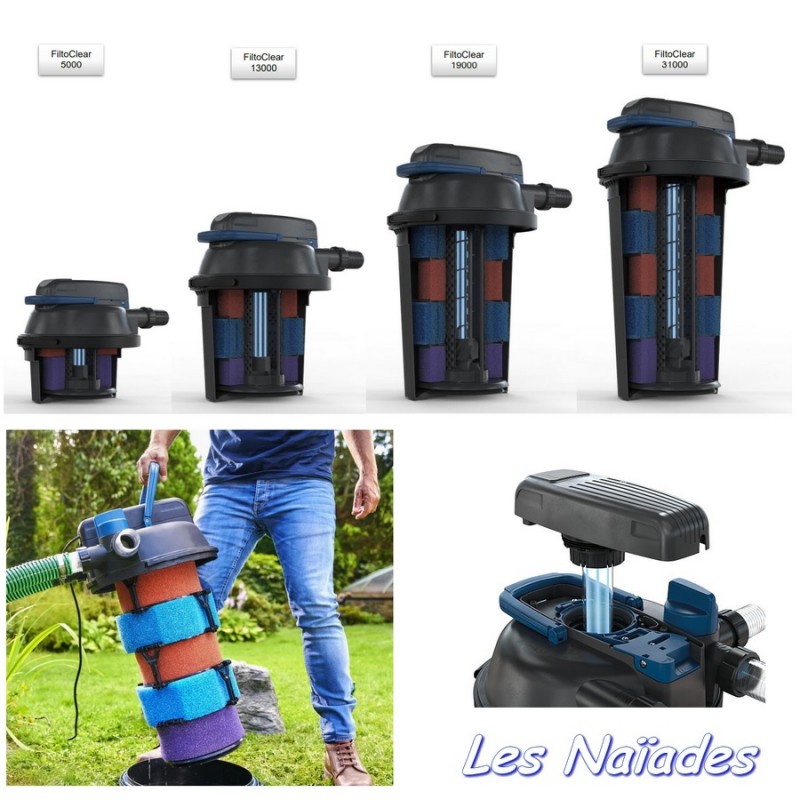

Modèle 5000 13000 19000 31000
Dimensions D x H en mm 380 x 310 380 x 510 380 x 630 380 x 750
Raccords en mm 38 & 50 38 & 50 38 & 50 38 & 50
Débit maxi en lit/heure 5000 9000 13000 17000
Pression maxi en bar 0,5 0,5 0,5 0,5
Puissance UVC en Watt 18 24 42 60
Longueur du câble en m 5 5 5 5
Qté de mousses filtrantes grossières (bleu) 0 1 2 2
Qté de mousses filtrantes moyennes (violet)  1 1 1 1
Qté de mousses filtrantes fines (rouge) 1 1 1 2
Rotor de nettoyage du quartz UVC non non oui oui
Volume max bassin poissons rouges en litres 1500 6500 9500 15500
Volume max bassin Koi en litres 3000 5000 7000

The FiltoClear 2.0 line of filters has been revised and redesigned by Oase engineers.

Now the UVC lamp can be removed for maintenance even when the pond pump is left on, this also prevents the quartz sleeves from breaking during the annual lamp change.

All internal foams have been redesigned to provide smoother and more precise compression of the filter foams when using the maintenance handle to extract debris.

This new mechanism has reduced the force required to operate the handle compared to its predecessors. In addition, an additional intermediate purple foam has been included which provides a size step between blue and red foams to prevent excessive clogging.

Guarantee: 2 + 1 years
