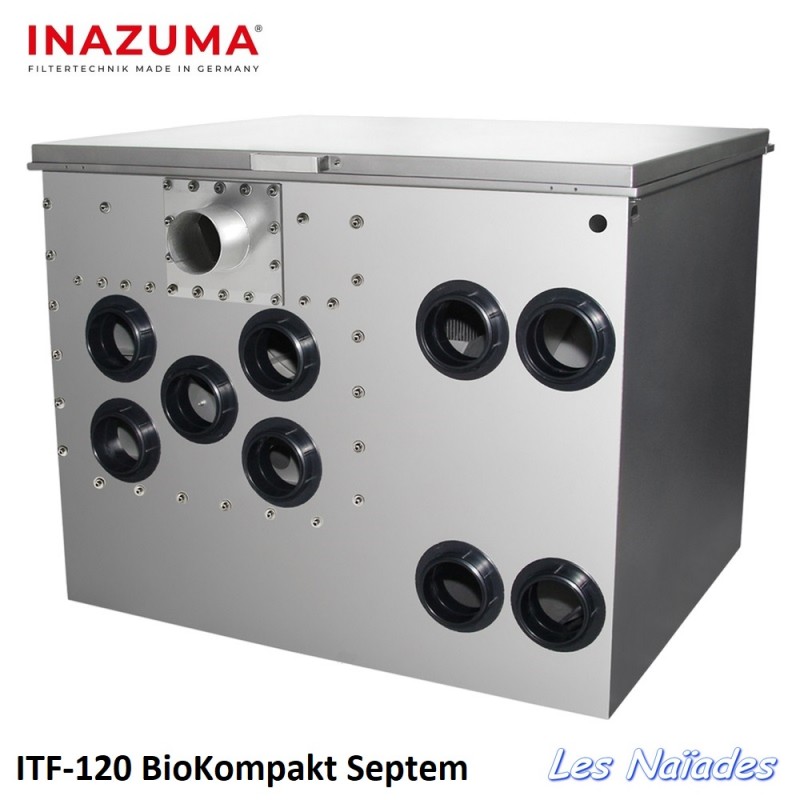

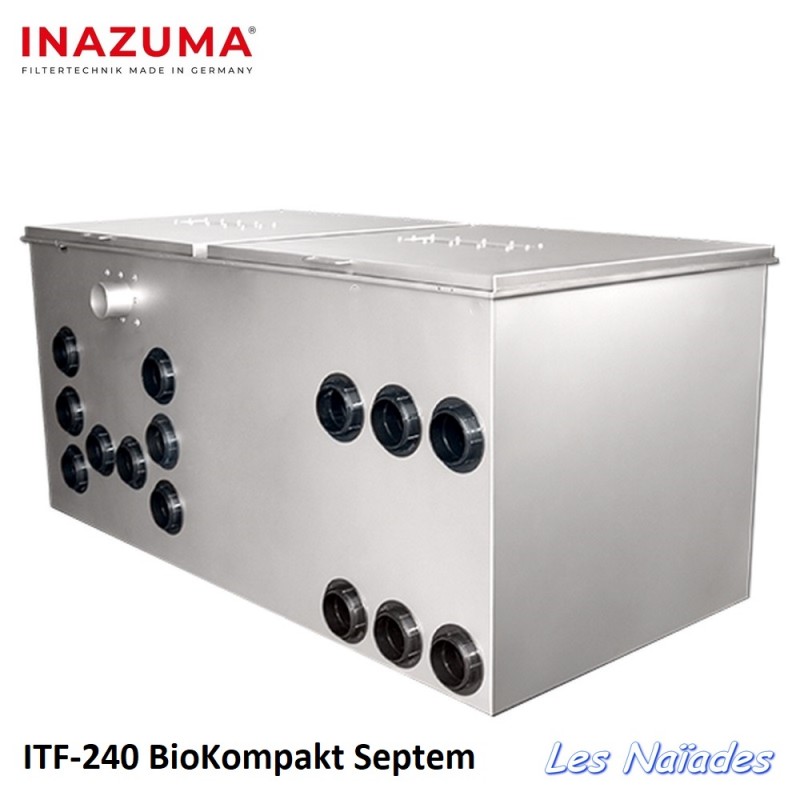

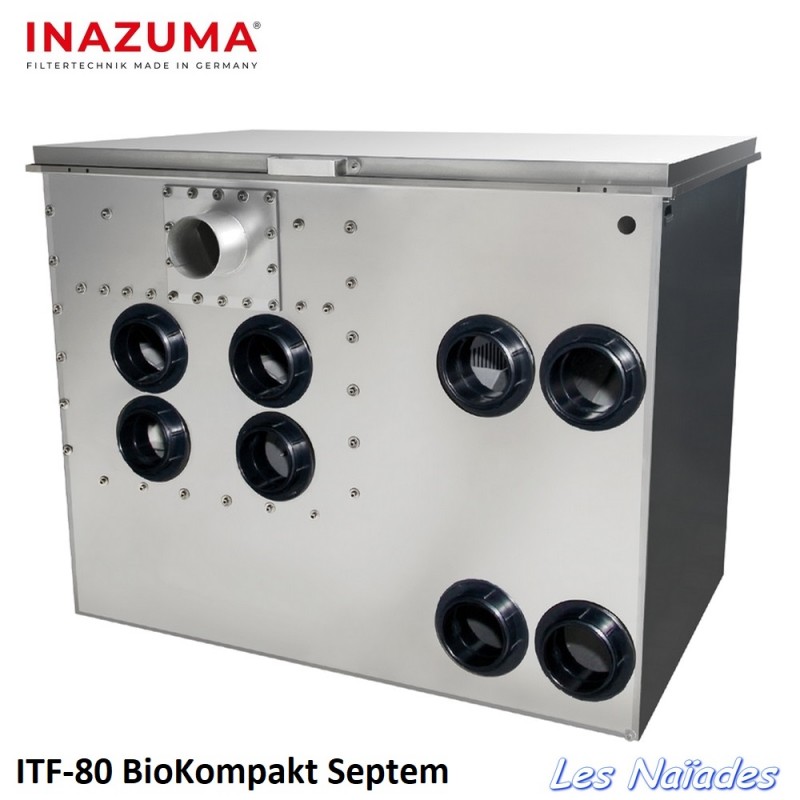

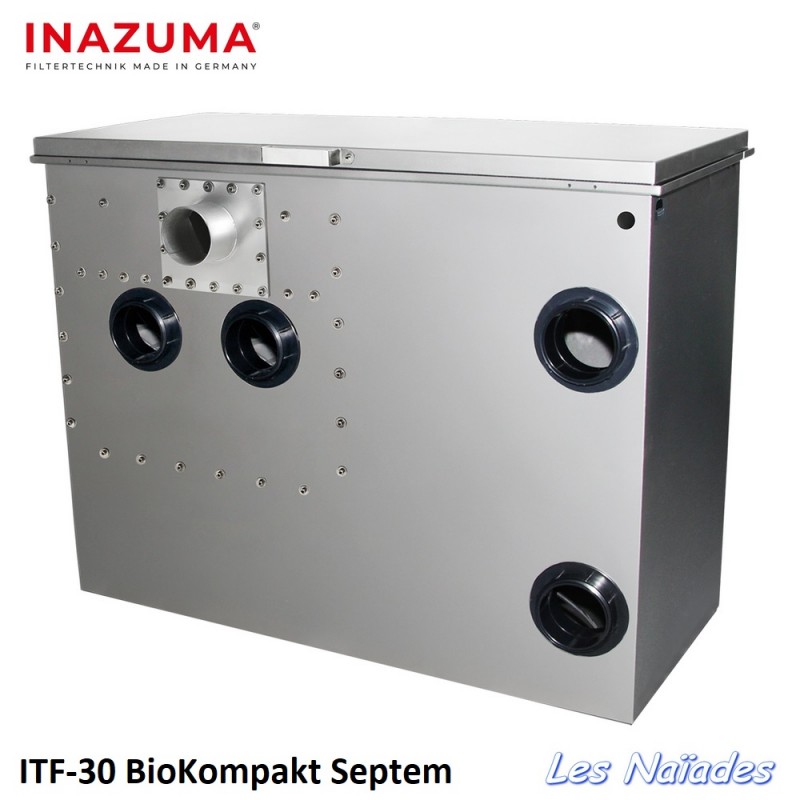

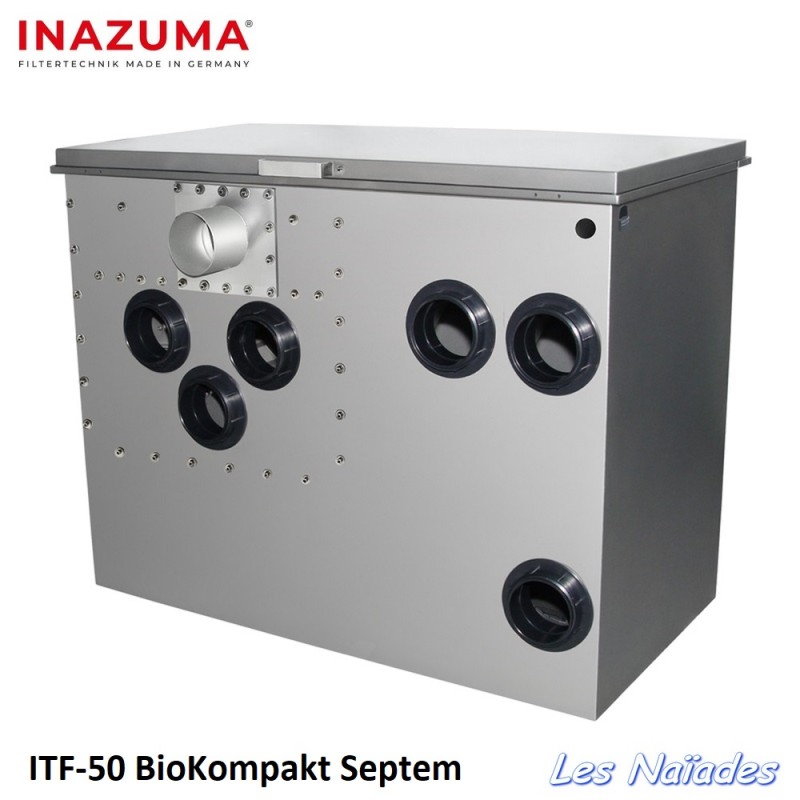

Drum filter Inazuma ITF BioKompakt Septem

BoKompakt "SEPTEM" Inazuma filter: a stainless steel filter with connected biological chamber.

Connected objects are gradually becoming part of our daily lives: this series of Septem BioKompakt filters will delight fans of new technologies.

A video is available in the description.

5 990,00 € tax incl.

Inazuma filter "SEPTEM": a connected stainless steel filter.

With the WebCSA application, you can view and control many parameters from your smartphone or tablet from all over the world, whether you are in your garden or on vacation in Spain.

Connected objects are gradually becoming part of our daily lives: there are followers, and people who are suspicious or who do not want unnecessary complications ...

This series of Septem filters will delight fans of new technologies.

But if the terms Wi-Fi or Internet connection disagree with you, be aware that this filter can still work without the need for an Internet connection: Internet connection at the location of the control is required once to configure the controller and activate optional accessories. .

If you want to use the control without a WLAN connection, you can also order it pre-configured "ex works".

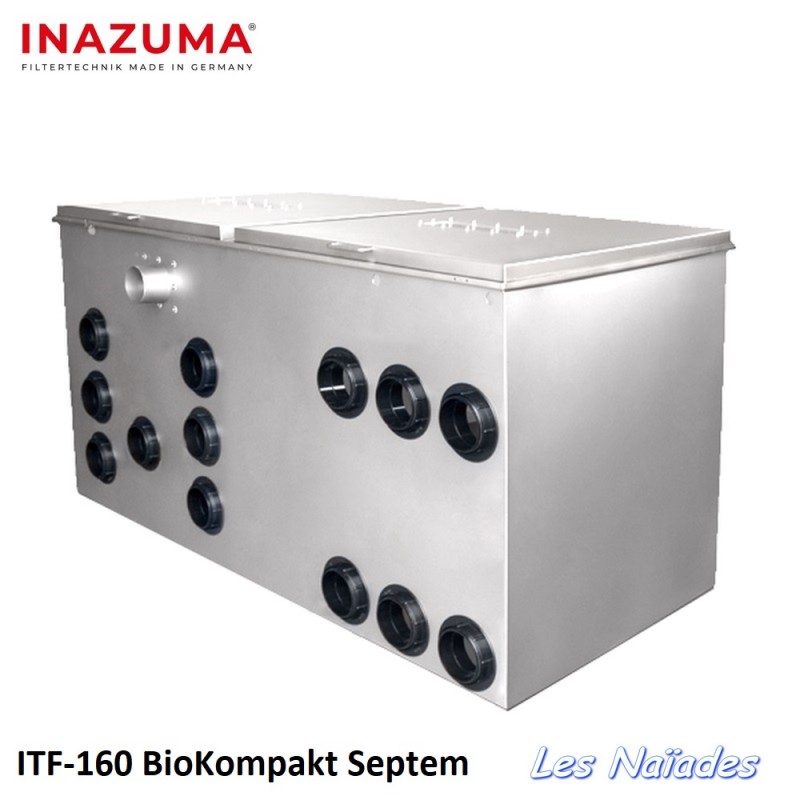

The Inazuma ITF BioKompakt drum filter from the SEPTEM range filters your pond thoroughly, reliably and fully automatically. The BioKompakt model combines mechanical water cleaning with biological water filtration.

It allows the mechanical cleaning of the water with a very fine filtration. When cleaning the water from the drum, particles larger than 50 microns are pushed aside and sent to the sewer! Optional UVC disinfection is also effective in combating algae.

The massive construction of stainless steel V4A (1.4571) makes the Inazuma ITF BioKompakt a reliable machine for many years to come.

The ITF Septem model can be used in both gravity and pumping mode (see diagrams below).

The gas spring mounted cover allows easy access to the filter, the V4A stainless steel body ensures long lasting quality.

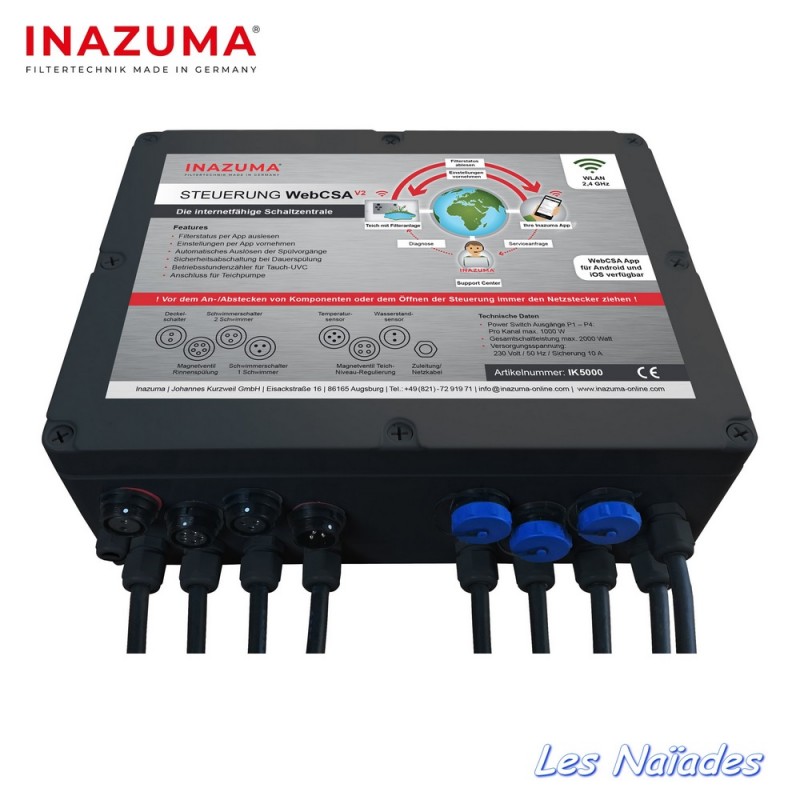

All filters of the SEPTEM series are delivered with the WebCSA controller allowing switching on / off and control of the filter and optional equipment such as UVC disinfection, level compensator, temperature probe, etc.

The guaranteed spare parts supply directly from the manufacturer ensures long-lasting peace of mind with a robust, low-maintenance filter. And with the quality "Made in Germany".

The 2-year warranty is included, the WebCSA V2 controller and of course the high pressure pump.

A pre-mounted bracket is also included but not the UVC lamp (s).

What are the differences from the Katan series ?

The Septem series has a connected WebCSA V2 controller, (Android and iOS) that's one of the big differences.

This series includes gas jacks on the cover which is reversible, a regularly rinsed waste discharge chute (speed flush), an anti-splash screen, the clean-brush system (brush that regularly cleans the edges of the chute) etc

What are the differences between Inazuma connected filters and other connected filters?

Inazuma has developed a complete and easy to use system! Other brands also offer connected filters but the possibilities are often very limited: generally they only allow the reading of a few values without any real means of modifying the operation of the filter.
Let's see what Inazuma offers us when your smartphone is connected (without any subscription):
State of the lid (open / closed) because the lid has a magnetic safety sensor.
Water level in the filter: correct or not.
State of the UVC sterilization system (in operation or not): you can turn it on or off.
Drum status: rinsing or on stand-by.
Summer/Autumn/Winter mode: this function fine-tunes the operation of the filter according to the probable degree of dirtiness of the water according to the seasons (modifiable).
The screen indicates the number of times the filter (the membrane) has been rinsed since a given date (you can reset it whenever you wish). This allows the control of the frequency of rinsing and by a simple calculation, the quantity of water used.
The screen also indicates the number of flushes of the waste water chute since a certain date (you can reset it whenever you wish).
Launching a manual rinsing from your smartphone
On / off of the pool circulation pump: in the event of a problem, you can switch off the pump remotely.
Adjustment of the membrane rinsing time (6 to 20 seconds) and the delay between two rinsings in auto mode.
Adjustment of the waste water chute rinsing time (2 to 10 seconds) and number of rinsings per day.
Adjustment of the membrane rinsing time (6 to 20 seconds) in manual mode.
Duration (in days) of special periods during which the filter is in high demand (autumn – winter)
Of course, in the event of an anomaly, you will receive a notification.
You can consult the logbook which will show you all the operations carried out by the system at the exact time!
Optional: water temperature reading
Optional: status and changes to the settings of the automatic water level compensator.
Optional: remote control of 3 sockets allowing the switching on/off of a system such as lighting, ventilation (Power Switch) etc.

For those who don't know how this filter works

The filter consists mainly of a tank in which is housed a rotating drum: this drum is coated with a 50 micron (0.05 mm) filter membrane on its periphery.

Dirty water from the basin is directed into the interior of the drum, and to leave this filter, water must pass through the membrane filter.

The water from the pond, which is free of particles, comes out of the mechanical filter and is directed to the biological part of the filter since this BioKompakt has a bio tank (Hel-X media optional).

As the dirty water passes through the drum, the particles settle, blocking the small holes in the membrane which gradually clogs.

The passage of water is slowed down, causing a difference in level between downstream and upstream of the sieve.

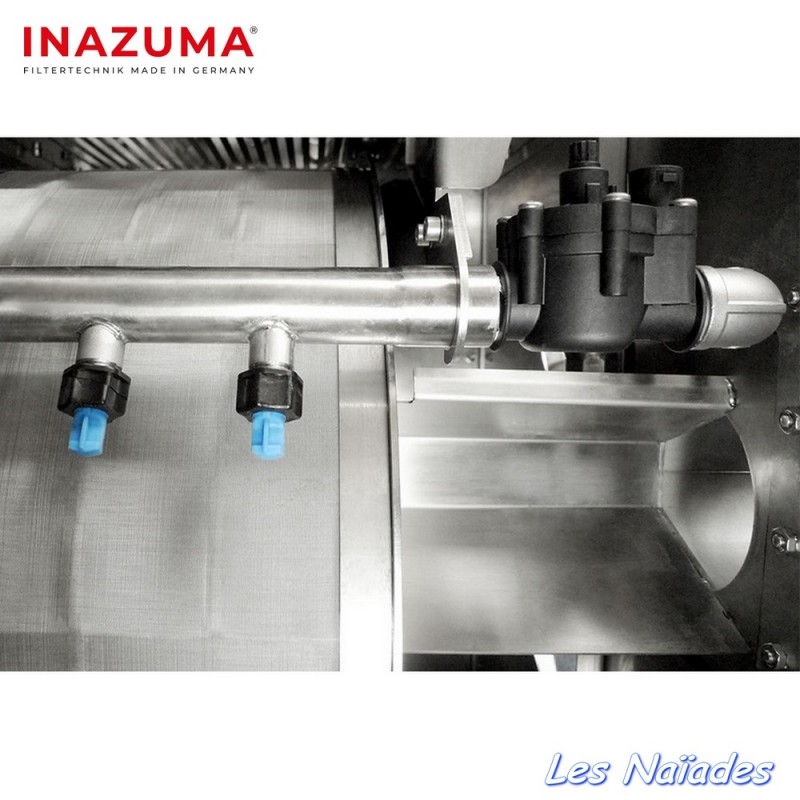

At this time, the detection system starts a drum cleaning cycle. From this moment, the drum turns very slowly and the nozzles placed on the upper part (outer side of the drum) project water jets on the filter membrane: under the pressure of the water, the smallest dirt is expelled from the filter membrane.

This dirt is collected in a gutter and directed to the sewer. The upstream / downstream water level is restored until the next cycle. This cleaning is minimalist in nature: it only occurs when necessary.

This model includes a biological filter: the water first passes from the drum part (mechanical filtration) to the biological part from where it will then be evacuated to the basin.

The WebCSA controller works without internet or app for drum control but network connection is required for advanced options.

Characteristics

Besides the features of the filter described below, you can also download the blueprint of this model.

Modèle ITF30 Bio Modèle ITF50 Bio Modèle ITF80 Bio Modèle ITF120 Bio Modèle ITF160 Bio Modèle ITF240 Bio
Mode de filtration Pompage - gravitaire Pompage - gravitaire Pompage - gravitaire Pompage - gravitaire Pompage - gravitaire Pompage - gravitaire
Matériau Inox 1.4571 Inox 1.4571 Inox 1.4571 Inox 1.4571 Inox 1.4571 Inox 1.4571
Poids kg 110 135 140 150 260 190
Dimensions L x l x H mm 1200 x 510 x 930 1200 x 610 x 930 1200 x 740 x 930 1200 x 890 x 930 1900 x 801 x 986 2200 x 1036 x 986
Surface du tamis immergé mm2 294700 412600 530500 707300 853737 1487700
Finesse de filtration micron 50 50 50 50 50 50
Entrée mm 2 x 110 3 x 110 4 x 110 5 x 110 7 x 110 8 x 110
Sortie mm 3 x 110 3 x 110 4 x 110 4 x 110 6 x 110 6 x 110
Sortie eaux usées mm 1 x 110 1  x 110 1 x 110 1 x 110 1 x 110 1 x 110
Débit max (10 mg MES/ltr) pompage m3 / heure 20 30 45 60 80 120
Débit max (10 mg MES ltr) gravitaire m3 / heure 15 25 35 45 65 100
Volume filtration Bio litres 300 350 450 560 720 920
Volume Hel-X litres 100 150 200 250 300 400
Quantité nourriture traitée / jour g 500 800 1000 1600 2400 3500
Volume max bassin à Koi conseillé m3 30 50 80 120 160 240
Volume max baignade conseillé m3 50 80 120 200 300 400
Tension nominale V 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz
Tension du moteur V 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz
Commande WebCSa V2 Inclus Inclus Inclus Inclus Inclus Inclus
Capteur couvercle Inclus Inclus Inclus Inclus Inclus Inclus
Support de lampes UVC Inclus (4 x) Inclus (4 x) Inclus (4 x) Inclus (4 x) Inclus (6 x) Inclus (8 x)
Protection anti-débordement Inclus Inclus inclus Inclus Inclus Inclus
Protection marche à sec de pompe Inclus Inclus Inclus Inclus Inclus Inclus

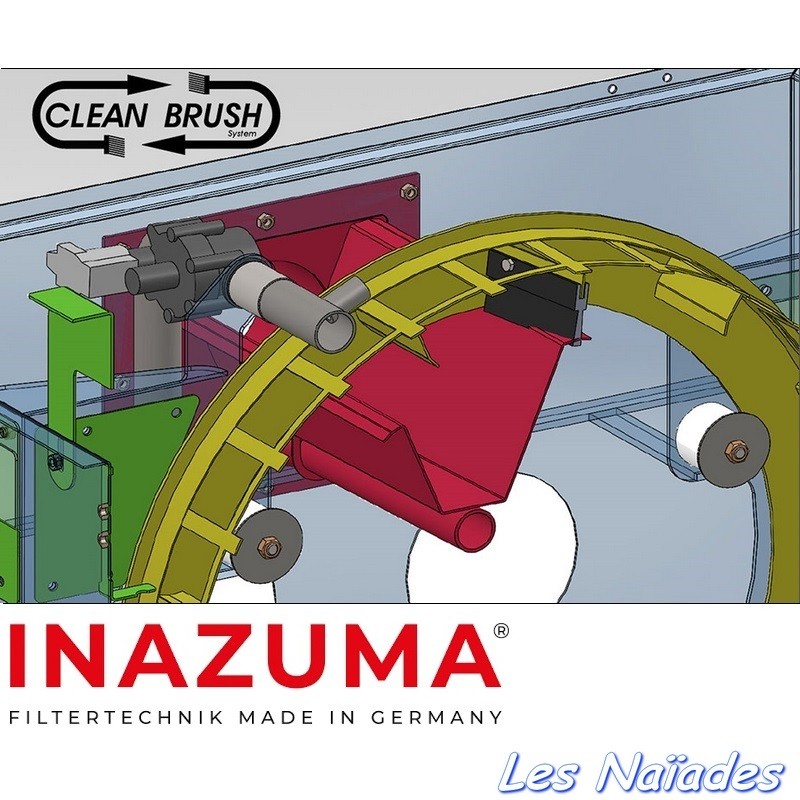

Clean-Brush Inclus Inclus Inclus Inclus Inclus Inclus

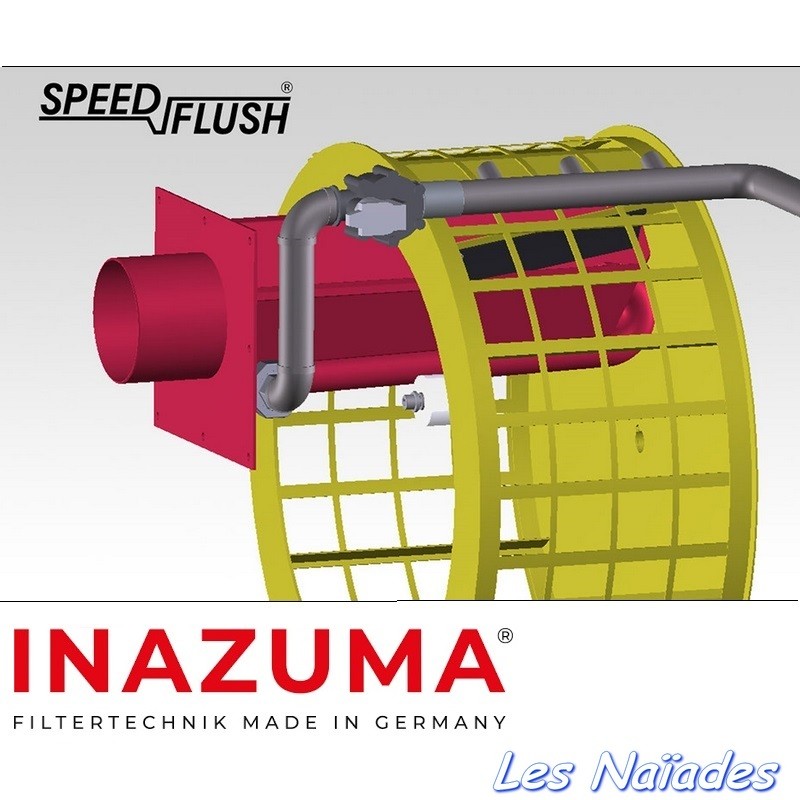

Speed-Flush Inclus Inclus Inclus Inclus Inclus Inclus

Options

UVC lamps, strainer, level compensator.

Delivery time: 3 days.

Operating diagrams

Vidéo

Video with animation describing the operation of drum filters (the model shown is a model with biological filter)

TRANSPORTATION

The free transport of this article does not apply since the transport is imperatively on pallet and not by simple parcel.
The price of transporting this item cannot be reasonably calculated in advance due to the fairly numerous variables: location, weight, volume, ordering additional items, possible discount, etc.
Rather than applying a fixed price which is often very penalizing, we prefer to calculate the price, on a case-by-case basis.
The price of shipping is decreasing: the more value you ship on your pallet, the more you give us the means to lower the price of shipping (or even make it free).
A price offer follows your order: you have the choice to accept or refuse.
If in the meantime, a payment has been made, the refund will take place as soon as you send your cancellation email.
You also have the possibility to consult us before placing an order.
