Drum filter Inazuma Quantum 120 BioKompakt

IK23120QBK

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks.

Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it?

A video is available in the description.

7 490,00 € tax incl.

The Inazuma Quantum 120 BioKompakt drum filter filters your pond thoroughly, reliably and fully automatically. This model is suitable for operating a Koi pond of up to 80 m³.

The performance of large drum filters is now also available for the garden pond. The installation, the complicated connection, it's over. From now on, small garden ponds can be equipped with SIMPLE automatic filtration that works continuously with the characteristics of large drum filters.

The Quantum 120 BioKompakt model allows the mechanical and biological filtration of water with very high filtration fineness. When cleaning the water through the drum, particles larger than 50 microns are retained by the stainless steel screen.

The massive V2A stainless steel construction makes the Inazuma a solid and reliable machine for many years. With an unparalleled finish!

The Quantum 120 BioKompakt model can be used both in pumping mode and in gravity mode (see diagrams below).
The removable lid allows easy access to the filter, the V2A stainless steel body guarantees long-lasting quality.

All Quantum series filters come with a simple and ingenious controller featuring a Clever V8 microprocessor: you plug in the plug and you're done.

A single simple configuration is required: pumping mode or gravity mode, and that's it!
The filter is also equipped with manual rinsing.

The supply of spare parts guaranteed directly by the manufacturer ensures long-term peace of mind (10 years) with a solid filter requiring little maintenance.

And with the quality "Made in Germany" the 2-year warranty is included

A pre-mounted bracket is also included but not the UVC lamp(s).

WHAT ARE THE DIFFERENCES WITH THE SEPTEM SERIES?

There are 4 differences:

1. The Quantum series does not have a WebCSA connected controller: its regulation is simplified and nevertheless allows automatic operation.

2. Quantum filters: completely in stainless steel V2A (1.4301- / Septem filters completely in stainless steel V4A (1.4571)

NB: INOX V2A (1.4301) is an austenitic stainless steel which is used in the construction of apparatus and machines as well as in the food industry or the medical field.

3. Gas springs installed on Quantum 300 and 400 models and all Quantum BioKompakt / Gas springs on all Septem models.

4. Finally, the number of times the chute is rinsed is factory-set to two cycles per day (the sieve itself is rinsed as needed automatically by the level sensors, of course).

While on Septem models, the number and duration of chute rinses can be modified via smartphone.

FOR THOSE WHO DO NOT KNOW HOW THIS FILTER WORKS.

The filter mainly consists of a tank in which is housed a rotating drum: this drum is coated with a 50 micron (0.05 mm) filtering membrane on its periphery.

Dirty water from the basin is directed inside the drum and, to leave this filter, the water must pass through the filter membrane. The pond water, which is freed from particles, then passes into the biological chamber of the filter.

As the dirty water passes through the drum, the particles settle, blocking the small holes in the membrane, which gradually clogs.

The passage of water is slowed down, which causes a difference in level between the downstream and the upstream of the sieve.

At this time, the detection system starts a drum cleaning cycle. From this moment, the drum rotates very slowly and the nozzles arranged on the upper part (external side of the drum) project jets of water on the filtering membrane: under the pressure of the water, the smallest dirt is expelled from the filter membrane.

This dirt is collected in a gutter and directed outside the filter. The upstream/downstream water level is restored until the next cycle.

This cleaning is of a minimalist type: it only occurs when necessary: the consumption of water and electricity is therefore negligible.

This model includes a mechanical filter AND a biological chamber for the moving bed (chamber with Hel-X 17)

FEATURES

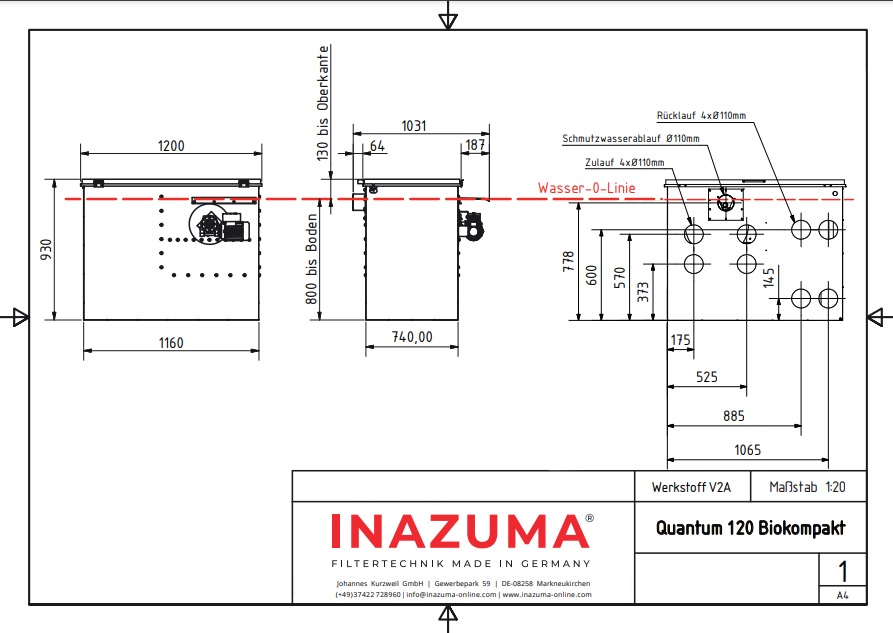

In addition to the filter features described below, you can also download the plan for this model.

Mode de filtration Pompage / gravitaire
Volume bassin à Koi maxi m3 80
Volume baignade maxi m3 120
Matériau Acier Inox V2A
Poids kg 130
Dimensions L x l x H mm 1200 x 1031 x 930
Surface du tamis immergé mm2 530500
Finesse de filtration micron 50
Entrée mm 4 x 110
Sortie mm 4 x 110
Sortie eaux usées mm 1 x 110
Débit max pompage (10 mg MES / litre) m3 / heure 45
Débit max gravitaire (10 mg MES / litre) m3 / heure 35
Volume bio utilisable  litres 470
Quantité d'aliments traités / jour grammes 1200
Tension nominale V 230 V / 50 Hz
Tension du moteur V 230 V / 50 Hz
Inclus Chambre biologique intégrée
Inclus Pompe de rinçage interne INOX
Inclus Unité de commande Clever V8
Inclus Support pour lampes UVC (4 x)
Inclus Protection anti-débordement
Inclus Protection marche à sec
Inclus Rinçage goulotte
Inclus Rinçage de la pré-chambre
Inclus Brosse / racloir de tambour
Options

UVC lamp, strainers, biological support (Hel-X 17), WebCSA connected controller

Operating diagrams

Vidéo

Video with animation describing how the drum filters work (model shown is not Quantum)

TRANSPORTATION

The free transport of this article does not apply since the transport is imperatively on pallet and not by simple parcel.
The price of transporting this item cannot be reasonably calculated in advance due to the fairly numerous variables: location, weight, volume, ordering additional items, possible discount, etc.
Rather than applying a fixed price which is often very penalizing, we prefer to calculate the price, on a case-by-case basis.
The price of shipping is decreasing: the more value you ship on your pallet, the more you give us the means to lower the price of shipping (or even make it free).
A price offer follows your order: you have the choice to accept or refuse.
If in the meantime, a payment has been made, the refund will take place as soon as you send your cancellation email.
You also have the possibility to consult us before placing an order.

Related Products

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

2 990,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

3 590,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

4 590,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

5 990,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

8 990,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

4 490,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

5 990,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

8 990,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

10 990,00 €

A new range of Inazuma "Quantum" stainless steel drum filters, simple, without electronic gimmicks. Many of our customers want a simple, effective and easy-to-use machine: if in addition, this filter does not cost an arm, why deprive yourself of it? A video is available in the description.

12 990,00 €

Stainless steel biological chamber: suitable for Quantum, Katan and Septem series drum filters. Designed to operate in pumping mode or in gravity mode.

1 690,00 €

Inazuma filter "SEPTEM": a connected stainless steel filter. Connected objects are gradually becoming part of our daily lives: this series of Septem filters will delight fans of new technologies. A video is available in the description.

4 600,00 €

BoKompakt "SEPTEM" Inazuma filter: a stainless steel filter with connected biological chamber. Connected objects are gradually becoming part of our daily lives: this series of Septem BioKompakt filters will delight fans of new technologies. A video is available in the description.

5 990,00 €

Stainless steel biological chamber: suitable for Septem series drum filters. Designed to operate in pumping or gravity mode.

2 200,00 €

UVC immersion Inazuma HD Pro 50000

563,00 €

UV Pro 50000 Inazuma - Supplement Unit

229,00 €

Power Switch extension WebCSA

265,00 €

Inazuma filter strainer.

49,00 €

Replacement UVC lamp Inazuma HD Pro 50000 Two models depending on your system version.

119,00 €

Replacement quartz Inazuma HD Pro 50,000 Two models depending on your system version.

49,00 €

Microprocessor control with WLAN and app connection (available for Android and iOS).Easy control of your filtration system by mobile phone or tablet from anywhere and anytime (internet connection required).Connection for motor, high pressure pump, 2 x UVC, incl. 1 output 230 V with protection against dry running

998,00 €

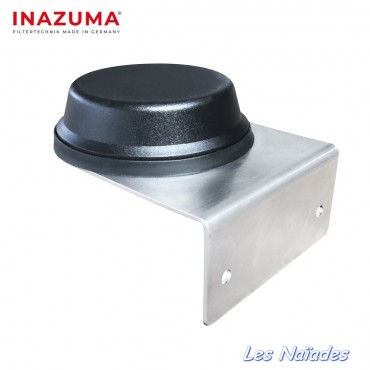

Inazuma multidirectional WLAN antenna, to amplify your WLAN signal.
